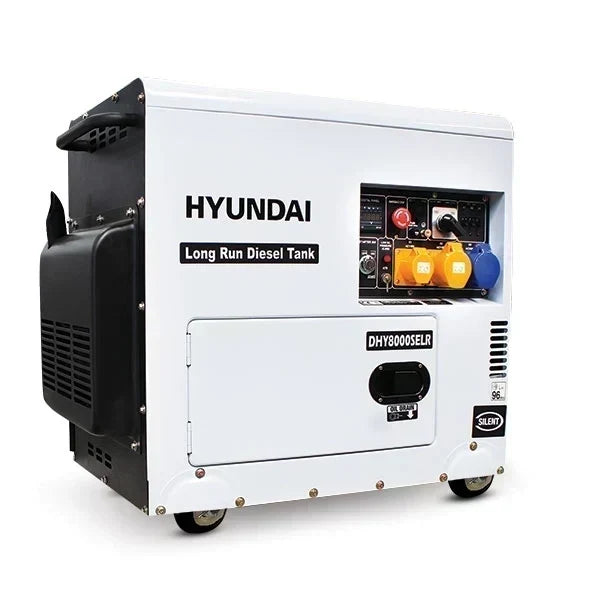

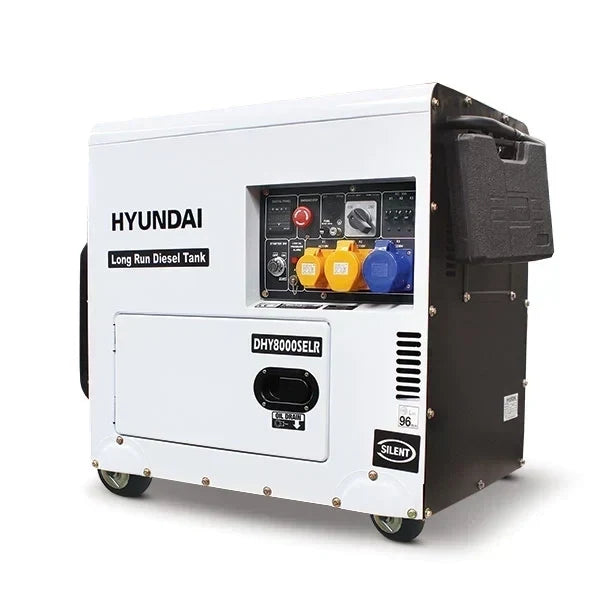

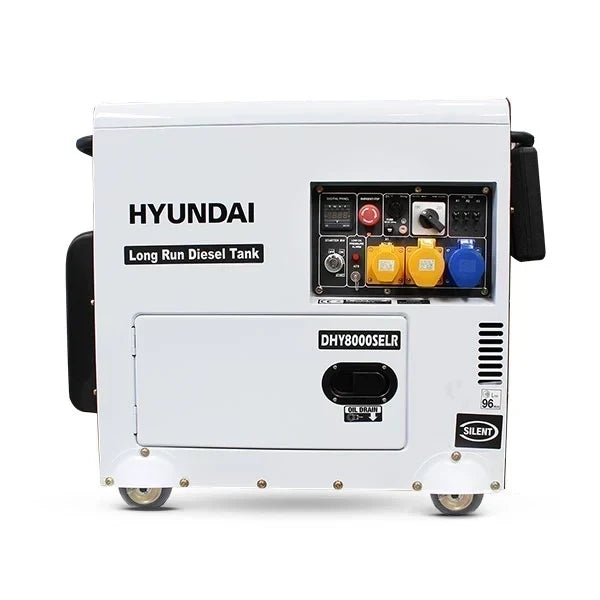

Diesel Standby Generator 5.8kW / 7.5kVA – Silenced Long Run, Single Phase, 230V UK Plug

Diesel Standby Generator 5.8kW / 7.5kVA

This generator delivers dependable power for home backup, the jobsite, camping and RV trips. Built for regular use, with the output and run time to keep tools and appliances going when the grid can't.

• Silenced Long Run
• Single Phase
• 230V UK Plug

Features & Specifications

Features:

• Dependable long-running standby diesel generator for backup power
• Equipped with a 25L diesel tank for an increased running time of up to 30 hours.
• Powered by a 4-stroke, air-cooled D452 diesel engine.
• Produces a maximum of 5.8kW of standby power.
• Uses ATS capabilities to automatically start and shut down during a power cut. ATS is sold separately.
• Housed in a silenced case with a sound rating of just 70dB @ 7 metres.



Technical Specification:

• Model - DHY8000SELR
• Rated/Prime kVA* - 6.3
• Rated/Prime kW - 5
• Max/Standby kVA* - 7.25
• Max/Standby kW - 5.8
• Phase - Single
• Voltage - 115 / 230

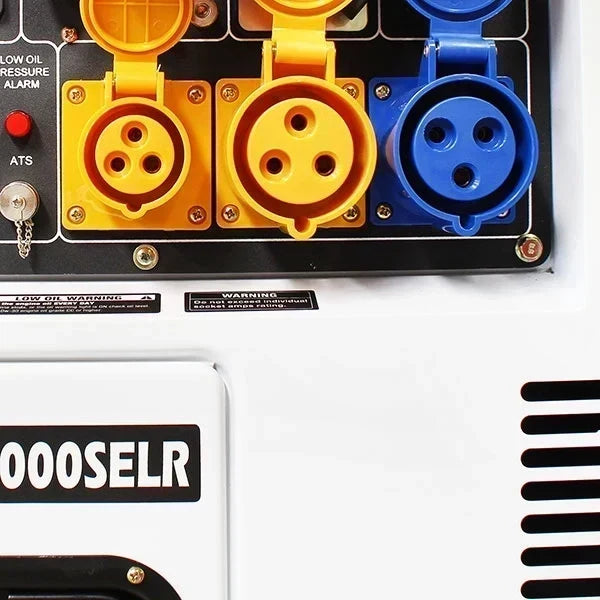

• Connection Method(s) - Sockets - 1 x 115V/16A 1 x 115V/32A 1 x 230V/32A
• Rated Speed (RPM) - 3000
• Frequency (Hz) - 50
• Max/Continuous Current (Amps) - 115v 50 / 43.5 - 230v 25 / 21
• Power Factor (Cosφ) - 1
• Fuel/Power Source - Diesel
• Fuel Tank (Litres) - 25
• Runtime (Hours) @ 100% Load - 14.62
• Noise Level @ 1m 75% load (dB) - 96
• Noise Level @ 7m 75% load (dB) - 70
• Diesel Engine Model - D450E
• Engine Power (hp) @ 3000rpm - 9
• Engine Displacement (CC) - 456
• No. of Cylinders - 1
• Recommended Oil Type - 15w40 / 10w40
• Oil Capacity (Litres) - 1.65
• Oil Filter Part No. - D450-B9+D450-B8
• Aspiration - Natural
• Fuel Regulation/Governor System - Mechanical
• Fuel Consumption (100% Load) [Litres] - 1.71
• Fuel Filter Part No. - D450-R05
• Cooling Forced - Air-Cooled
• Alternator Model - D450/500-S01-4
• Breakers - 1P 30A 1P 21A 1P 13A
• Alternator Type - Brushed
• Voltage Regulation - AVR
• Air Filter Part No. - D450-I4
• Net Weight (kg) - 158
• Gross Weight (kg) - 167
• Wheel Kit? - Yes
• Product Dimensions L x W x H (mm) - 960 x 560 x 890
• Packaged Dimensions L x W x H (mm)- 960 x 560 x 910

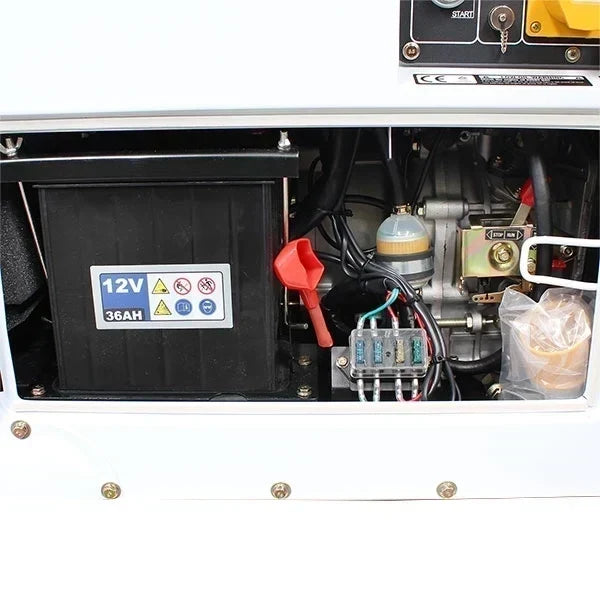

• Battery (Ah) - 12v 36a/h
• ATS / MTS Compatible - Yes

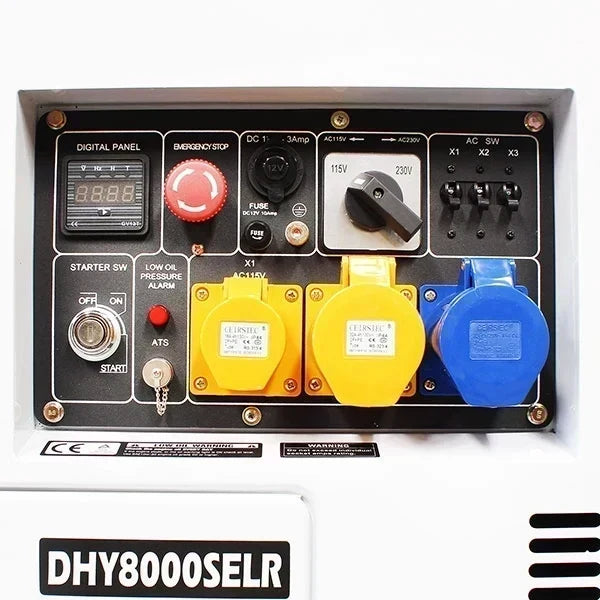

• Control Panel - LED3 DISPLAY
• Warranty - 1 Year / 1000 Hours* (Terms apply)
• Model EAN - 610370632338
• Product Type - Diesel Generator
